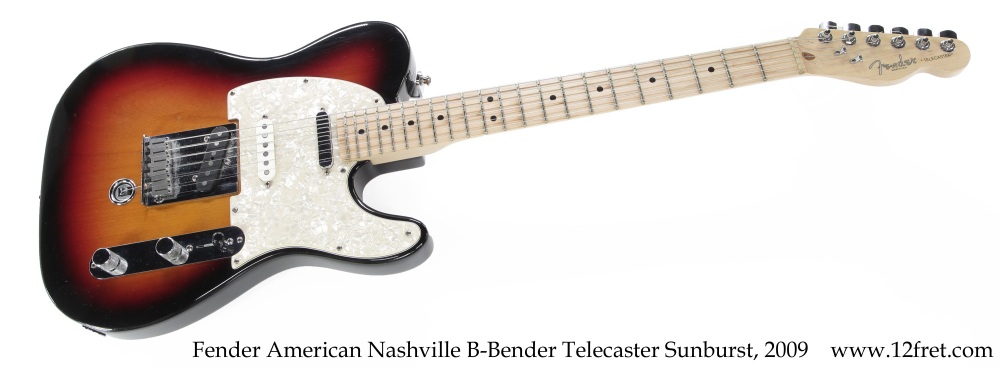

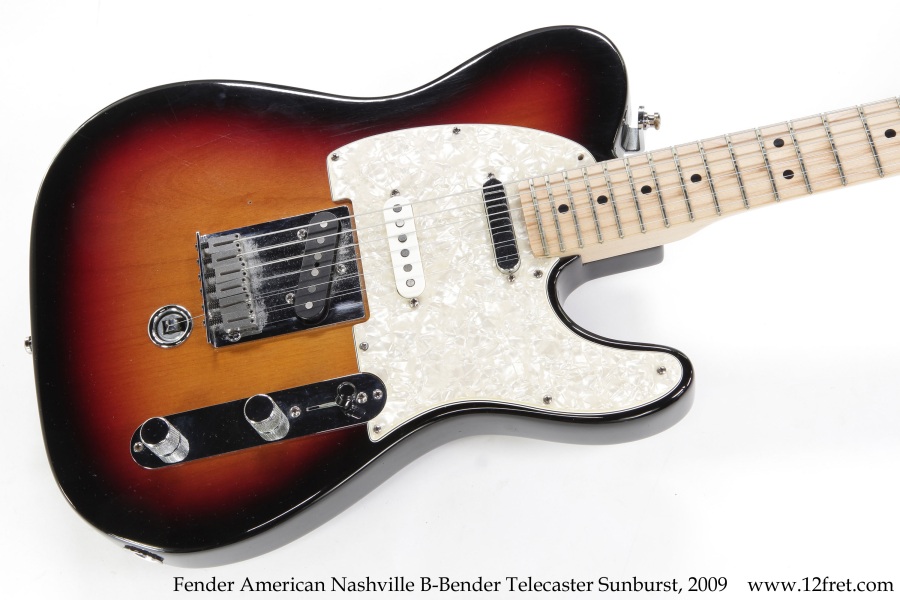

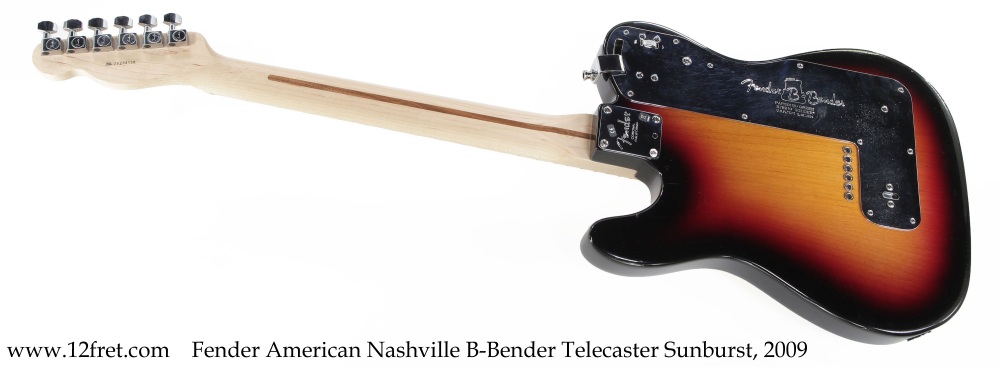

Fender American Nashville B-Bender Telecaster Sunburst, 2009

Brand:

Instrument Categories: , , ,


The item shown here has sold and is no longer available. We are presenting it for historical and reference purposes. To view items currently available for sale, please visit our ecommerce site at https://shop.12fret.com. For permission to re-use any of these materials, please contact us at info@12fret.com


Here’s something special that we don’t see every day – a Fender American Nashville B-Bender Telecaster®, factory stock with the Parsons-Green B Bender!

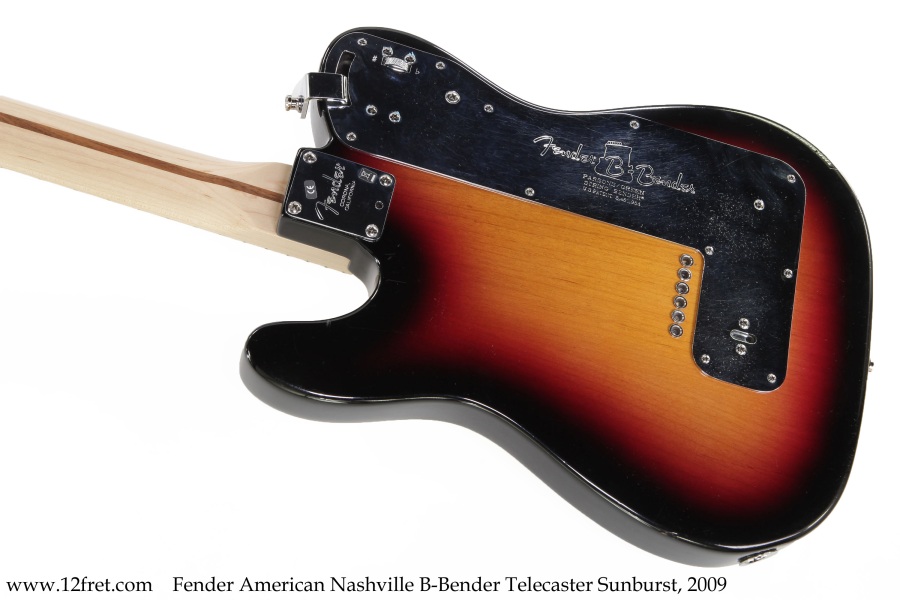

Originally designed by Gene Parsons and Clarence White in 1968, the B-Bender installs to a significantly modified Telecaster body. A large amount of wood is removed from the back of the body to accommodate a set of levers, springs and linkages from the upper strap pin to a roller behind the B string saddle. When the player presses down on the neck, the lever moves and the B string is pulled sharp. The amount of pitch rise is set by a roller on the back plate.

This fascinating device is detailed at Gene Parson’s ‘Stringbender’ website.

Built in Corona California with a date of January 2009, this guitar is in overall good condition with some play wear to the finish. You’ll notice some buildup around the saddles – this comes from the recommended use of small amounts of light oil on the saddles. It plays very well, and to my hands the rolled-fingerboard necks from this period are the most comfortable – not too chunky but enough size to get a good grip.

A black hardshell non-original case is included.

Here’s what the builder says about the Fender American Nashville B-Bender Telecaster:

“Our Fender American Nashville B-Bender Telecaster® guitar was inspired by the customized instruments of top Nashville players, and produces those plaintive country bends and spine-tingling steel guitar glissandos. This model features a Texas Special™ Strat pickup in the middle position, five-way Strat-o-Tele switching, and the B-Bender string bending system, which puts those beguiling pedal steel licks right at your fingertips.”

Fender American Nashville B-Bender Telecaster® Specifications:

  • Model Name: American Nashville B-Bender Telecaster®, Maple Fingerboard, 3-Color Sunburst
  • Series: American Standard
  • Country Of Origin: USA
  • Body: Alder
  • Body Finish: Urethane
  • Body Shape: Telecaster®
  • Colour: 3-Color Sunburst
  • Hardware Finish: Chrome
  • Bridge: 6-Saddle String-Through-Body Tele® with Block Steel Saddles
  • Tuning Machines: Deluxe Staggered Cast/Sealed
  • Pickup Configuration: SSS
  • Bridge Pickup: American Standard Single-Coil Tele®
  • Middle Pickup: Custom Shop Texas Special™ Single-Coil Strat®
  • Neck Pickup: American Standard Single-Coil Tele®
  • Pickup Switching: 5-Position Blade: Position 1. Bridge Pickup, Position 2. Bridge and Middle Pickup, Position 3. Middle Pickup, Position 4. Middle and Neck Pickup, Position 5. Neck Pickup
  • Control Knobs: Knurled Flat-Top
  • Controls: Master Volume, Master Tone
  • Commodity Code: 9207901000
  • Dimensions: 5.25×15.25×42.00 IN
  • Fingerboard: Maple
  • Neck Finish: Satin Urethane
  • Neck Material: Maple
  • Neck Shape: Modern “C”
  • Fingerboard Radius: 9.5″ (241 mm)
  • Fret Size: Medium Jumbo
  • Number of Frets: 22
  • Scale Length: 25.5″ (64.77 cm)
  • Position Inlays: Black Dot
  • Truss Rods: Bi-Flex™
  • Truss Rod Wrench: 1/8″ Hex (Allen)
  • Nut Material: Synthetic Bone
  • Nut Width: 1.6875″ (42.86 mm)
  • Orientation: Right-Hand
  • Pickguard: 4-Ply White Pearloid
  • Strings: Fender® USA 250R Nickel Plated Steel (.010-.046 Gauges), PN 0730250406

  • Model: American Nashville B-Bender Telecaster
  • Year: 2009
  • Finish Sunburst
  • Class: Used
  • Serial Number: Z8234158, dated to January 2009 at Corona, California
  • Country of Origin: USA
  • Condition: Good
  • Date Posted: 11/01/2024

  • This instrument has been sold

  • Including Hard case
  • Instrument Weight: 99lbs 4.09kg
  • Scale Length: 25.5in 647.7mm
  • Nut Width: 1.706in 43.34mm
